Handheld Vibration Meter VM-600

    Buy cheap Handheld Vibration Meter VM-600 from wholesalers

    Buy cheap Handheld Vibration Meter VM-600 from wholesalers
    • Buy cheap Handheld Vibration Meter VM-600 from wholesalers

    Handheld Vibration Meter VM-600

    Ask Lasest Price
    Supply Ability : 50, 000PCS/Year
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : negotiation
    Brand Name : L&D
    Model Number : VM-600
    Certification : CE ISO SGS
    Delivery Time : 4 working days
    • Product Details
    • Company Profile

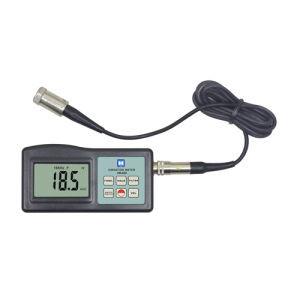

    Handheld Vibration Meter VM-600


    Feature & Advantage

    * In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
    * Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
    * Individual high quality ccelerometer for accurate and repeatable measurements.
    * Wide frequency range (10Hz~10kHz) in acceleration mode.
    * Optional headphones for use as electronic stethoscope.
    * Bearing condition monitoring function.
    * Use "USB data output" and "RS-232 data output" to connect with PC.
    * Provide "Bluetooth ™ data output" choice.

    Technical data

    SensorPiezoelectric Accelerometer
    Measuring RangeAcceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
    Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS
    Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
    Frequency RangeAcceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
    Velocity: 10 Hz ~ 1k Hz
    Displacement: 10 Hz ~ 1k Hz
    Accuracy5 % of Reading + 2 digits
    Analogue OutputAC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
    Power OffManual Power Off or Auto Power Off
    Battery IndicatorLow Battery Indicator
    Data OutputUSB, RS-232, Bluetooth
    Operating ConditionsTemperature: 0~50 °C Humidity: <90 %RH
    Power Supply4 x 1.5V AAA size (UM-4) Battery
    Dimensions124 x 62x 30 mm
    Weight120 g (Not Including Batteries)


    Standard Accessories
    1. Main Unit
    2. Magnetic Suction Seat
    3. Piezoelectric Transducer
    4. Probe (Cone)
    5. Probe (Spherical)
    6. Carrying Case
    7. Manual Book


    Optional Accessories
    1. Headset
    2. USB, RS-232 data cable with software
    3. Bluetooth data out put with software

    Unit Type:piece
    Package Weight:1.000kg (2.20lb.)
    Package Size:28cm x 25cm x 8cm (11.02in x 9.84in x 3.15in)
