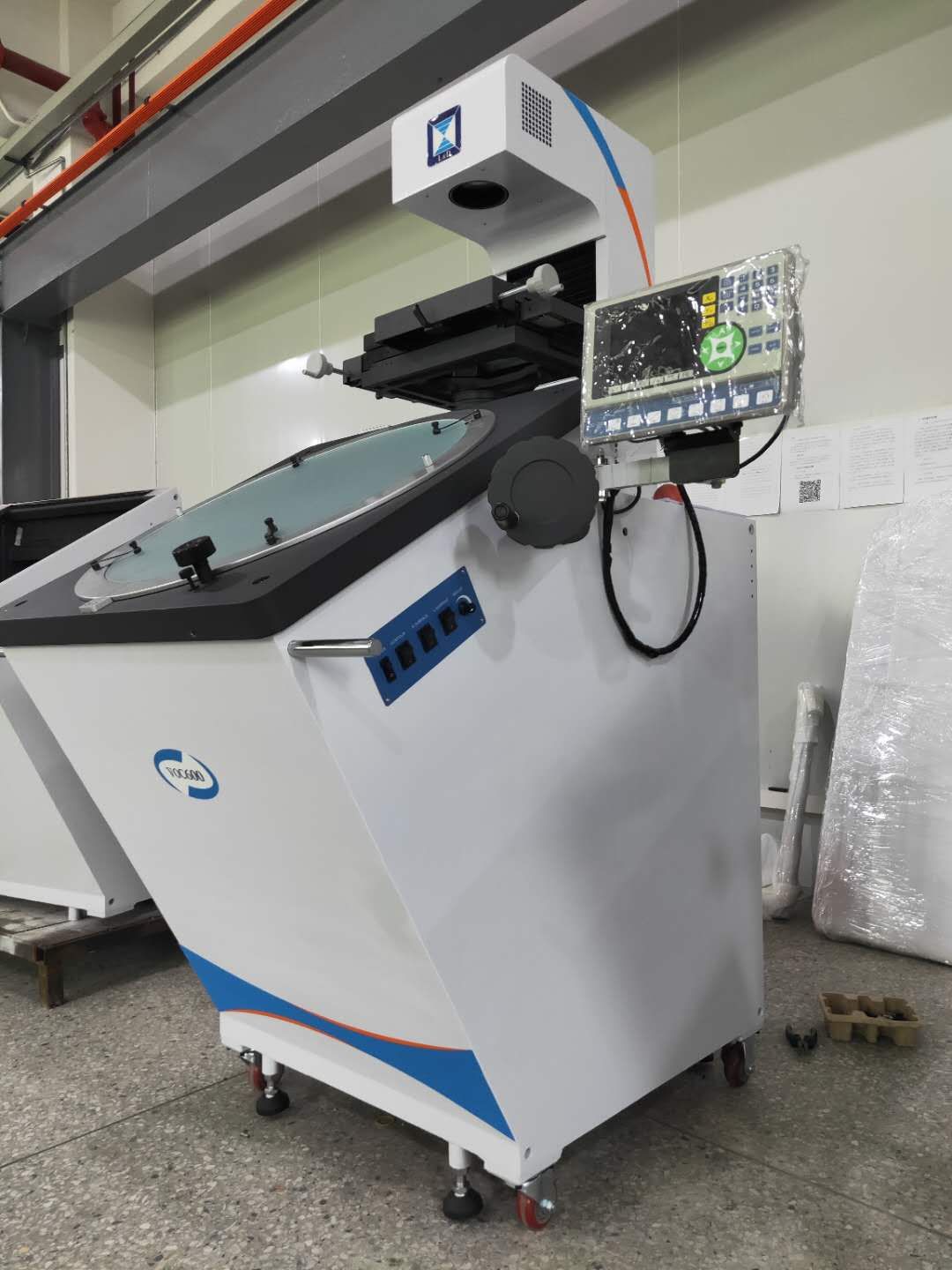

Large screen Floor Standing VOC600 Optical Comparator Metrology Equipment

VOC600 series large Floor standing Profile Projector are precise and excellent non-contact optical measuring instrument integrate with the technology of optic, mechanic, electricity and computer.
The Floor-standing model ¢ 600 Profile Projector is specially used to inspect the phone backlight, LCD, Gear, sealing strip for car, etc.

Features & Advantage
1. Floor-standing model Profile Projector using overhead illumination which allows a large, conveniently positioned screen so that projected images can be easily traced or compared with a template.
2. Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement.
3. The standard oblique surface illumination unit provides clear and bright images, allowing easy inspection of non-reflective work-pieces such as plastic parts or printed materials.
4. The optional optical edge detector eliminates human errors which may be involved in visual alignment, ensuring speedy, accurate, and consistent measurements, regardless of operator's skill.

Technical parameter

Model	VOC 600-200*100
Projected image	Inverted
Metal table' s size(mm)	404*265
Glass table' s size(mm)	270*170
Stage Travel X-axis	200mm
Stage Travel Y-axis	100mm
Stage Travel Z-axis	50mm(for focus)
Resolution	0.5µm
Measuring unit	Built-in linear scales
Accuracy	(2.5+L/100)µm
Screen	Screen Diameter: 615mmwith 4 film clips
	Screen material: fine ground glass
	Reference line: Staggered cross and crosshair
	Screen rotary range: 0° -360°
	Rotary angle resolution: 1' or 0.01° (switchable)
Digital Readout	DC-3000 Counter with RS232 output 1. Measure, preset and construct the graphic elements such as the point, line, circle, angle, distance, rectangle, thread and so on 2. Convenient axis-skew and coordinate shift 3. Quickly data getting by foot-switch and edge detector(option) 4. Print out user program, graphic elements and displayed three-axis coordinates. 5. Transfer current linear scale positions to PC by RS232. 6. Record the measuring steps and the measure the same word pieces in batch puantity 7. Various coordinates displaying ways: Polar, Cartesian, INC and ABS coordinates in Metric units or Imperial units. 8. Linear error correction and segmental linear error correction 9. Connect with linear scale or rotary encoder with Z-axis. 10. Store 100 permanent graphic elements and 10 temporary graphic elements 11. DC3000 metrology counter support English and Simplified Chinese display interface
Illumination	• Contour illumination: 24V/150W halogen bulb • Optical system: Zoom Telecentric system Oblique reflected illumination: 24V/150W halogen bulb (available with 50x lens and 100x lens) Vertical reflected illumination: 24V/150W halogen bulb • Light source: Halogen bulb (24V, 150W) • Optical system: Vertical illumination
Focusing	Manual focus
Power	AC100-240V, single phase 50/60Hz, Total power 650W
Cooling	Built-in cooling fans
Dimension	1200(mm)1138(mm)1938(mm)
G. W/N. W	590KG/360KG

Objective lens

Objective lens	Magnification	5X	10X	20X	50X	100X
	View field diameter	120	60	30	12	6
	Working Distance(mm)	242.8	143.2	85.5	92	48.5
	Max. workpiece height	50	50	50	50	48
