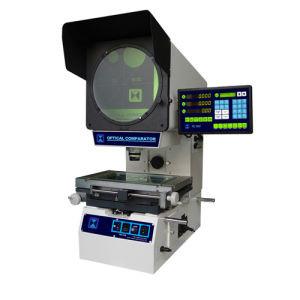

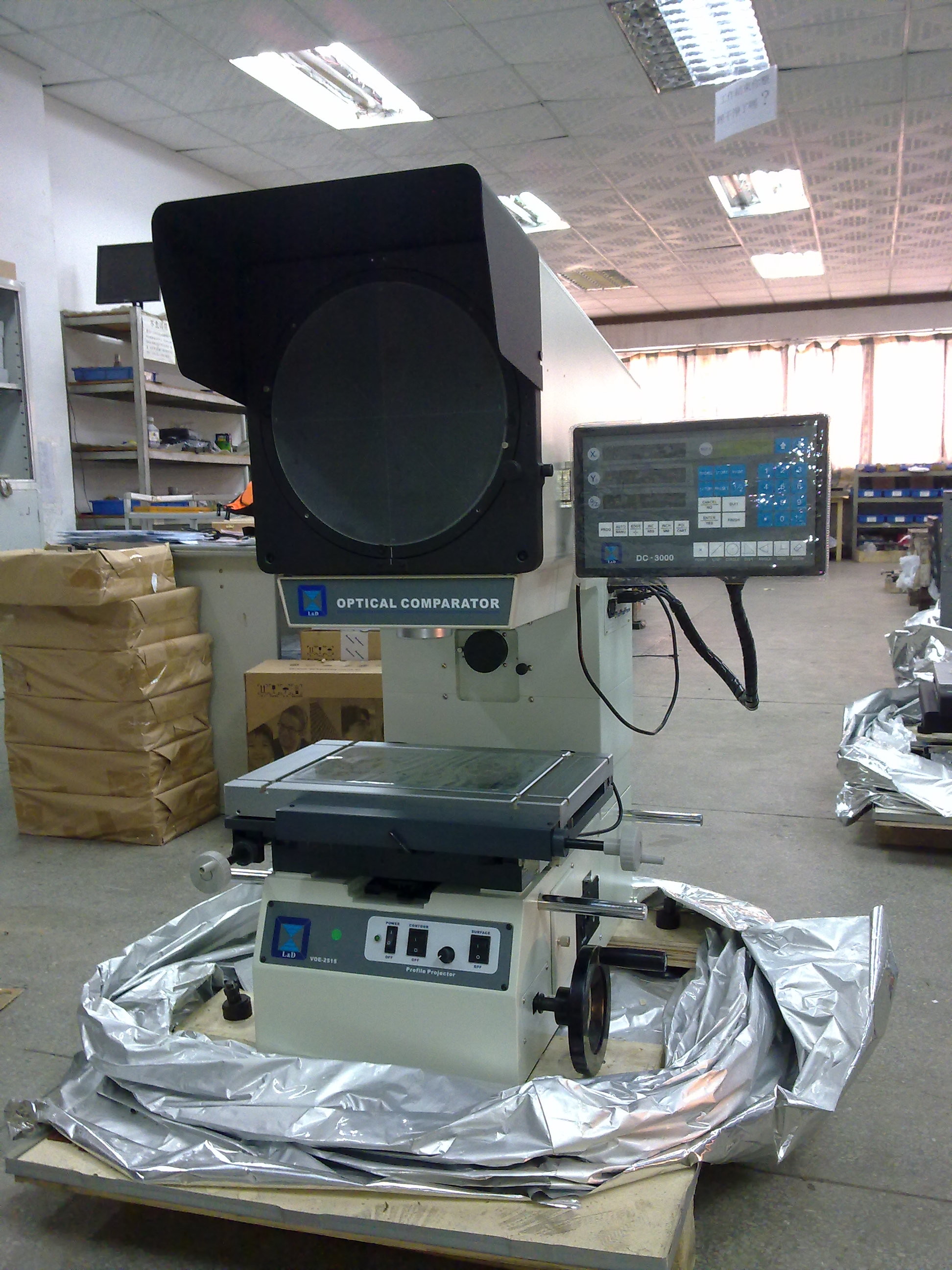

    300mm screen large travel Profile Projector Measurement with 400mm*300mm travel

    Ask Lasest Price
    Supply Ability : 1000PCS/Year
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : negotiation
    Brand Name : L&D
    Model Number : VOE-4030
    Delivery Time : 13 WORKING DAYS
    Certification : CE
    • Product Details
    • Company Profile

    300mm screen large travel Profile Projector Measurement with 400mm*300mm travel


    Character and Advantage for VOE-4030 profile projector
    1. Full erect: Not be affected by upside down and division in the left and right
    2. High precision: (3+L/75) μm is comparable to the accuracy of the foreign similar products
    3. Large travel: 400*300*100mm(for the focus)
    4. Large load: The accuracy remains stationery under the press of 50 kg
    5. Projector head: Adjust the focus by ascending and descending
    6. Edge detector: Automatically aim and gather data.

    Specification

    ObverseVOE-4030
    Metal table' s size(mm)606×466
    Glass table' s size(mm)450×350
    Stage Travel X-axis400mm
    Stage Travel Y-axis300mm
    Stage Travel Z-axis100mm(for focus)
    Accuracy(3+L/75)µm
    ScreenScreen Diameter: Diameter 312mmwith 4 film clips
    Screen rotary range: 0° -360°
    Rotary angle resolution: 1' or 0.01°
    Digital ReadoutQC200 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance).
    IlluminationTransmission and reflection: 24V/150w-halogen lamp.
    PowerAC110-120v, 200-240v, single phase 50/60Hz Total power 400W
    CoolingFans
    G. W/N. W300/250KG
    Dimension(L*W*H)1040×780×1120mm

    Standard delivery

    Digital Readout QC200VOE-10X ObjectiveScreen Clamp
    Foot-SwitchPower CableLight source

    Optional accessory

    Measuring SoftwareEdge DetectorCharts (3 kinds)
    VOE-20X ObjectiveVOE-50X ObjectiveVOE-100X Objective
    Calibration ScaleV-shape ClampSwivel center support
    Holder ClampRotary table
