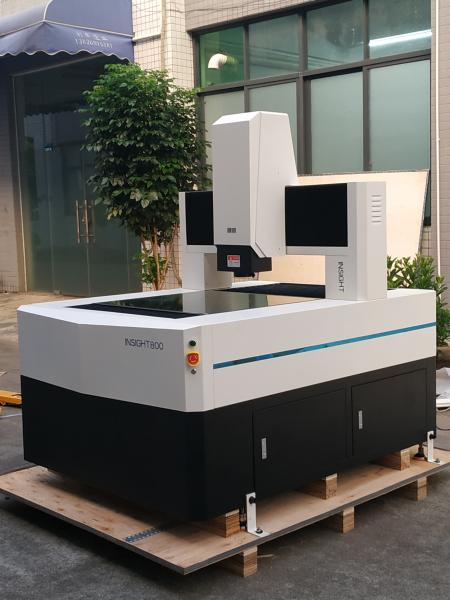

    Floor standing large travel CNC 3D Video Measuring Machine

    Ask Lasest Price
    Supply Ability : 50, 000PCS/Year
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Price : negotiation
    Brand Name : MICRO ACCURACY
    Model Number : INSIGHT800P
    Certification : CE
    Delivery Time : 14 WORKNG DAYS
    • Product Details
    • Company Profile

    Floor standing large travel CNC 3D Video Measuring Machine

    CNC benchtop multi-sensor 3-D Measuring Machine is high precision measurement solutions for large parts. Complete with Metrology Software, Programmable Zoom lens, Servo motion control, the Vision machine measure parts up to 2 meters.

    CNC benchtop multi-sensor 3D Measuring Machine is the ideal model for larger LCD, LED, PCB, Film and Large glass products inspection. Working with professional CNC Metrology software and Auto-lens satisfies various sizes measurements.

    CNC benchtop multi-sensor 3-D Measuring Machine are also widely used with multiples of smaller parts nested in a fixture.

    Feature & Advantage
    1. DIN 000 grade granite table master base guarantees strength, accuracy and stability
    2. 0.0005mm resolution Germany HEIDENHAIN self-adhesive metal grating on X and Y axis ensure the accuracy and long life
    3. High precision 0.7X-4.5X Auto-Lens as standard satisfies various sizes measurements without re-calibration
    4. Germany Gigabit Ethernet Industrial Camera
    5. Programmable surface cold-light source and contour parallel source is used to enhance the performance of illumination.
    6. Fast Servo Motor Control
    7. Fast and accurate Z measurements with Vision
    8. Powerful Metrology software is simple to use, combination with joystick, keypad and mouse
    9. The Vision Systems are Probe-ready (option), including UK RENISHAW contact probe and Japan Keyence CCD laser probe, so can measure height, depth, ball and other 3D data with high precision


    Technical data

    Item No.INSIGHT500PINSIGHT800P
    Working table's size570mm*470mm851*651mm
    Stage Travel X-axis500mm800mm
    Stage Travel Y-axis400mm600mm
    Stage Travel Z-axis200mm(focus)
    Feed mechanismCNC
    Resolution0.5µm
    Measuring Accuracy(2.5+L/200) µm
    Repeatability0.002 mm
    Load50kg
    Video System

    CCD Camera:Gigabit Ethernet Industrial Camera

    Zoom Lens : 0.7X-4.5X Auto Zoom Lens

    Illumination

    Contour illumination: LED lamp

    Surface illumination: Programmable LED ring light

    PowerAC110/220V, single phase 50/60Hz Total power 400W
    Environment(20 ± 2 ) °C ; 55% ~ 65%
