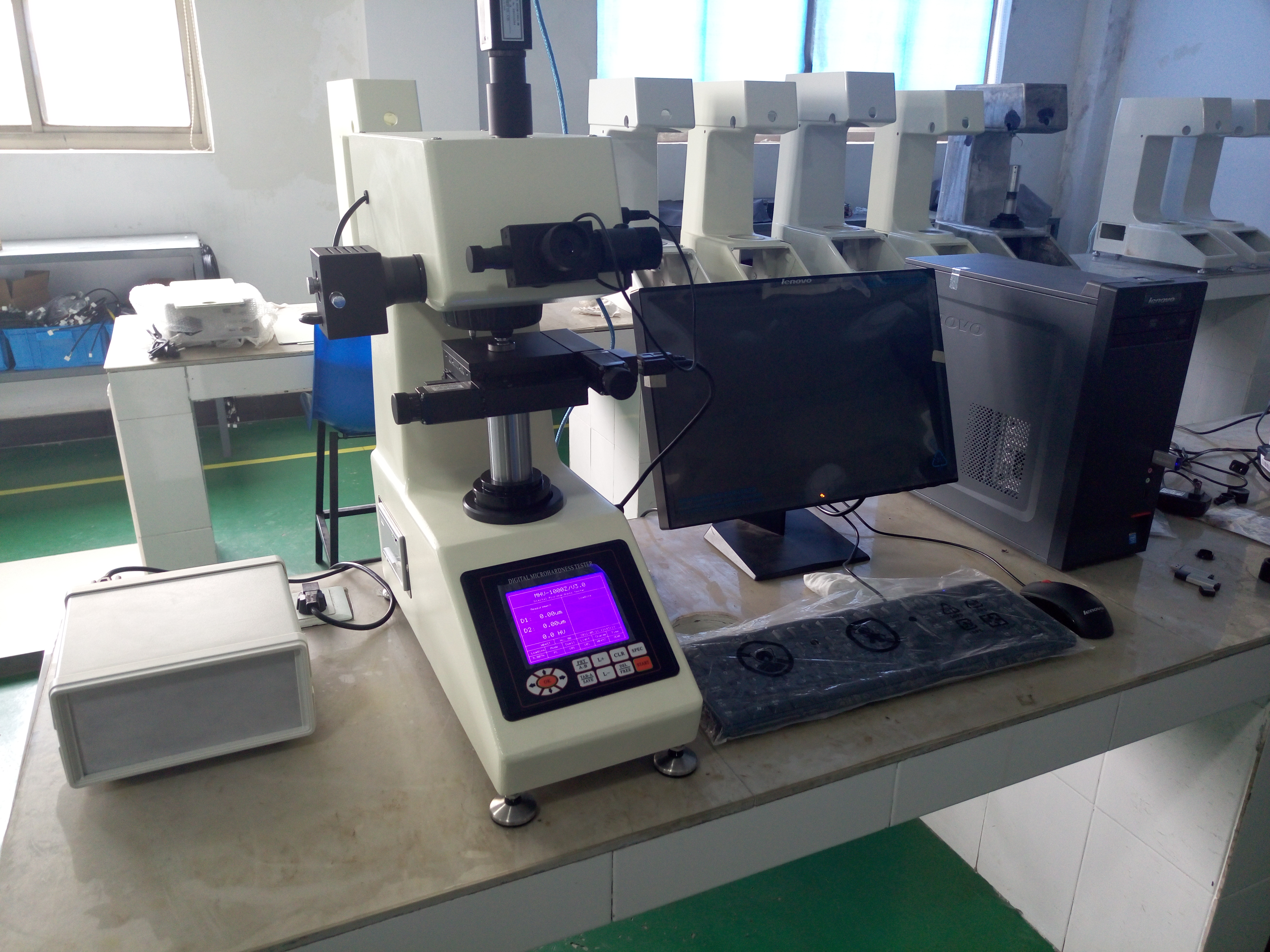

    Automatic Micro Vickers Hardness Testing Machine HVD-1000C


    Usage
    Model HVD-1000C series automatic Micro-Vickers hardness tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

    Typical applications
    1. Steels, IC wafers, non-ferrous metals
    2. Thin plastic, metallic foils, plating, coating, surface layers, laminated metals
    3. Glass, ceramics, agate, gem
    4. Depth and gradient of carburized and flame hardened layers


    Features & Advantage

    1. Motorized turretEquipped with auto-platform, users can measure automatically
    2. Fully automatic load, dwell and unloading control
    3. Built-in thermal printerCCD Video measurement system as standard

    Specifications

    Product nameAutomatic Micro-Vickers Hardness Tester
    ModelHVD-1000C
    Testing loadgf10, 25, 50, 100, 200, 300, 500, 1000
    N0.098, 0.245, 0.49, 0.98, 1.96, 2.94, 4.9, 9.8
    Indentation MeasurementDigital Sensor /Software Measurement
    Testing Range5HV~3000HV
    Lens & Indenter SwitchMotorized turret
    Load controlAutomatic (Loading/Dwell/Unloading)
    Dwell TimeAdjustable 0~60s
    Magnification of MicroscopeObservation:10x; Measurement:40x
    Digital EyepieceMagnification:10x
    Auto X-Y AnvilSize:100*100mm;Travel:50*50mm; Resolution:0.1µm
    Video System1/2'' inch Color CCD Camera
    Measuring softwareVickers Hardness Measuring and Driven Software
    Max. Height Of Specimen100mm
    Instrument Throat98mm
    Hardness IndicationLCD Display, Dwell time, hardness value
    IlluminationHalogen lamp light source
    Dimension (L*W*H)480*305*545mm
    Gross/Net Weight50Kg/40Kg
    Power Supply110V/220V 50Hz
    AccuracyEN-ISO 6507 , ASTM E384, GB/T4340.2
    Standard delivery:
    Main Unit1pcs
    Motorized turret1pcs
    Diamond Vickers Indenter1pcs
    Vickers Hardness Block2pcs
    Measuring software1pcs
    10x Objective1pcs
    40x Objective1pcs
    10x Digital Eyepiece1pcs
    XY Auto Anvil
    XY-stage with micrometers1pcs
    Clamping devices3pcs
    Extension tube for CCD1pcs
    Adjustable foot3pcs
    Level gauge1pcs
    Micro-Vickers test plates2pcs
    Accessories Case1pcs
    Anti-dust Cover1pcs
    Installation & user manual1pcs
