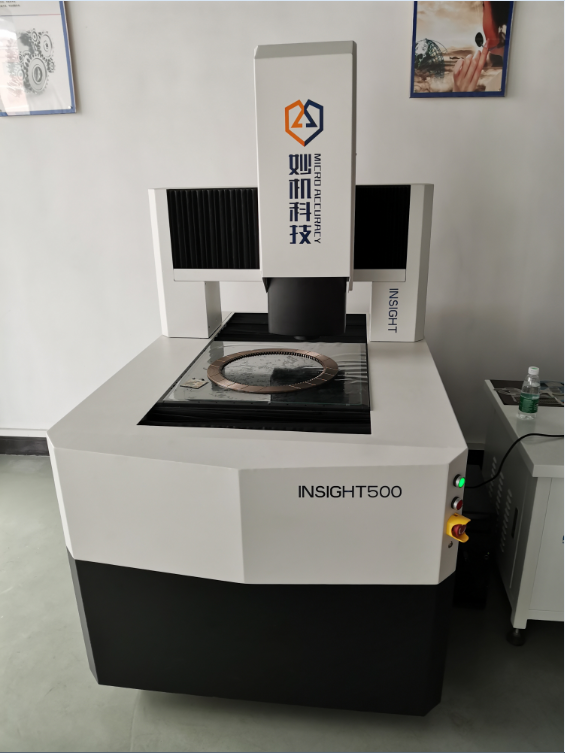

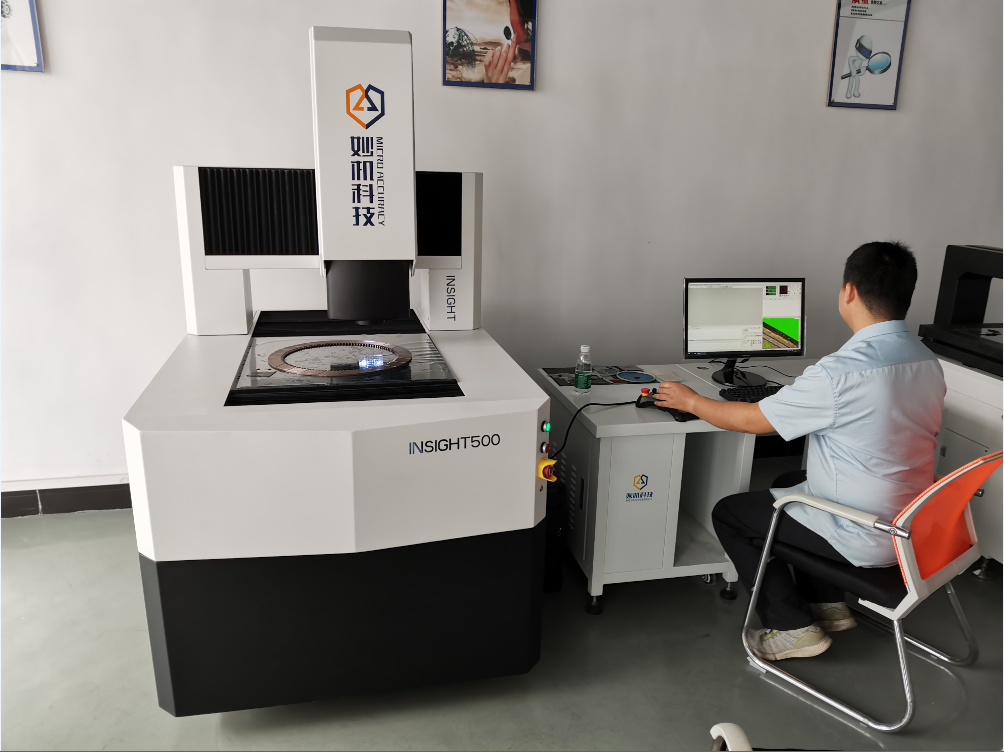

    3D CNC Bridge Multisensor VMM with Probe

    3D CNC Bridge Multisensor VMM with Probe


    Usage:


    INSIGHT series automatically big travel is suitable for all application fields for 2D coordinate measurement. 3D as well. It is widely used in LCD, LED display, touch screen, mobile phone tablet, large glass products, auto parts, large PCB, film, television, hardware, molds, instruments, plastics, precision electronics, precision machinery and so on.


    Features:

    ■ High-precision marble base, table and column to ensure high stability and rigidity

    ■ PMI high precision linear guide and TBI grinding grade ball screw

    ■ Panasonic full-closed-loop servo motor, speed can be adjusted

    ■ RSF high precision non-contact grating scale with resolution 0.0005mm

    ■ Programmable 5-ring 8-zone annular surface light to meet different angle lighting requirements

    ■ Fully automatic zoom lens, no need re-calibrate when changing magnification, save calibration time and avoid human error

    ■ Optional Renishaw contact probe for height, depth and other 3D measurement

    ■ Optional THK linear guide and ball screw

    ■ Optional KEYENCE laser displacement sensor for roughness, flatness surface measurement

    ■ Optional spectral confocal sensor for measuring small and sensitive surfaces


    Technical data:

    ModelINSIGHT500INSIGHT800
    X,Y axis travel(mm)500*400800*600
    Z axis travel(mm)200(can be customized)
    X,Y,Z axis resolution (μm)0.5
    Measuring accuracy (μm)2.0+L/200 L=measuring length (mm)
    Drive methodCNC
    CameraSentech CCD camera
    Detent zoom lens0.7X~4.5X
    Video magnification23X~190X
    Object of view10.6mm~1.6mm
    Working distance90mm
    Measuring softwareCNC 2D
    IlluminationTransmittedLED programmable ring light
    ContourLED traceable parallel contour light
    Power supplyAC100~240V 50/60Hz
