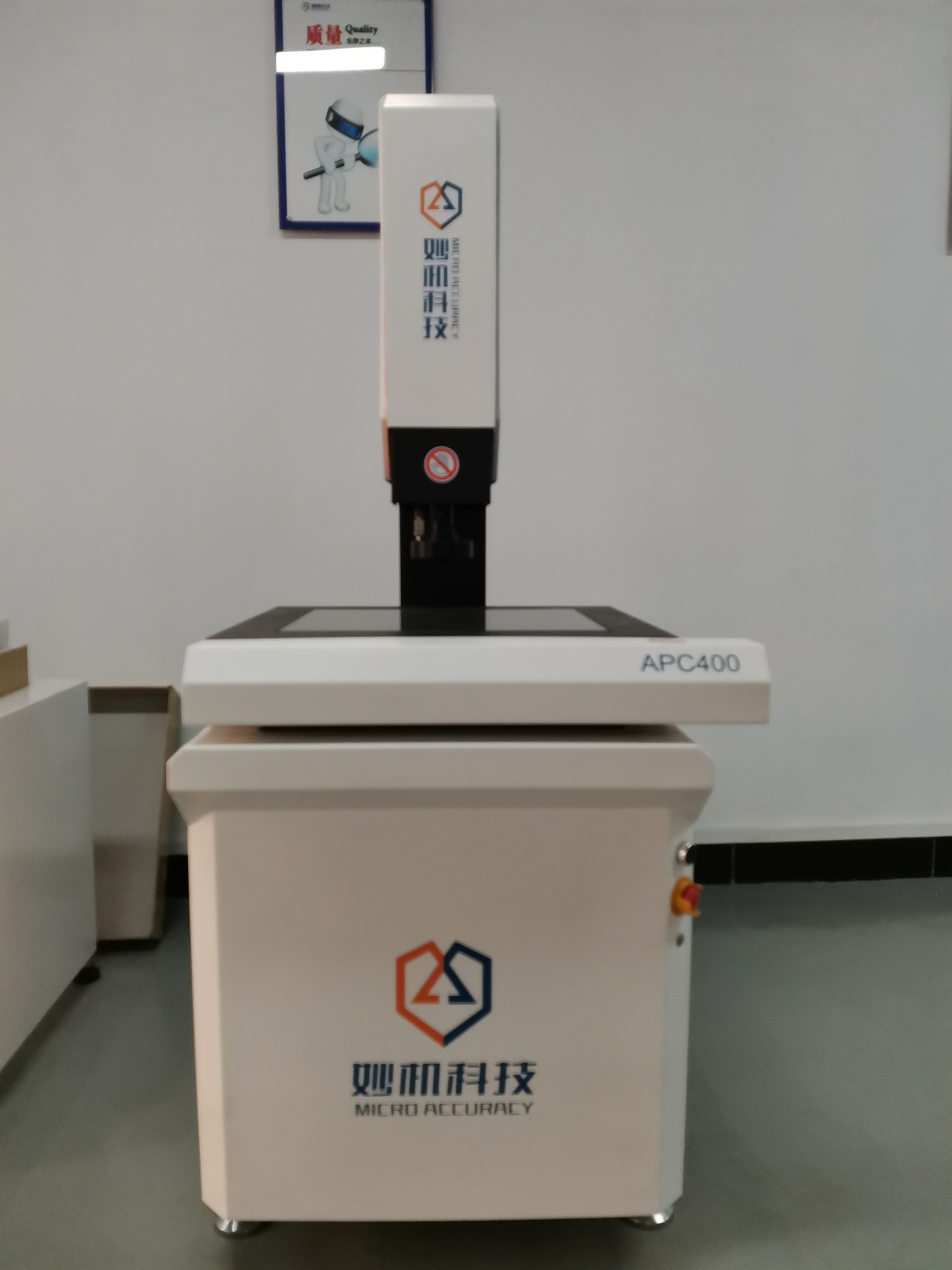

    Non contact CNC laser Video Measuring System APC400 for height flatness


    Non-contact 400*300mm CNC Video Measuring System
    Automated Precision Checking APC series are automated type non-contact optical measurement device, it is with beautiful and generous structure. Combined with our CNC metrology software, the inspect device can achieve batch measurement with high efficiency.

    Feature
    • X,Y and Z axis of CNC measuring instrument are controlled by Panasonic servo motor, with high positioning accuracy and smooth movement
    • Joystick and mouse operation, easy to use
    • High-hardness, high-precision and non-deformable granite base and upright columns are stable, durable and elegant
    • Programmable LED cold lights adopted for surface lamps can carry out surface measurement for various complicated work-pieces, with higher measurement accuracy
    • Standard with automatic software can measure the complex work-pieces with high efficiency
    • Fast Auto Focus, user can choose auto zoom as option according to the needs


    Technical data

    ModelAPC300APC400APC500
    Stage Size (mm)506*356606*456756*656
    Glass Size (mm)330*230430*330530*430
    Travel (mm)X axis300400500
    Y axis200300400
    Z axis200200200
    Driving SystemCNC(Servo Motor Control)
    Load(KG)152025
    Speed280 mm/s
    Resolution of X/Y/Z-axis0.001 mm (1μm)
    Positioning Accuracy0.002 mm (2 μm)
    Accuracy(2.5 + L/200 )μm L=Measuring lenght(mm)
    SoftwareMicroCheck Automated Metrology softwae
    Video System• CCD Camera: High resolution CCD camera
    • Zoom Lens: 0.7X-4.5X
    Illumination

    Contour illumination: programmable LED light source

    Reflective illumination: programmable LED ring light

    Weight (KG)320380460
    Power Supply110V-120V/220V-240V AV, 50/60 Hz


    Optional

    • Auto zoom lens is available
    • Renishaw MCP/TP6 is available
    • Japan Keyence laser is available
    • Renishaw scale is available
