    O-Rings and Seals checking machine VOC-1505

    Brief Introduction:

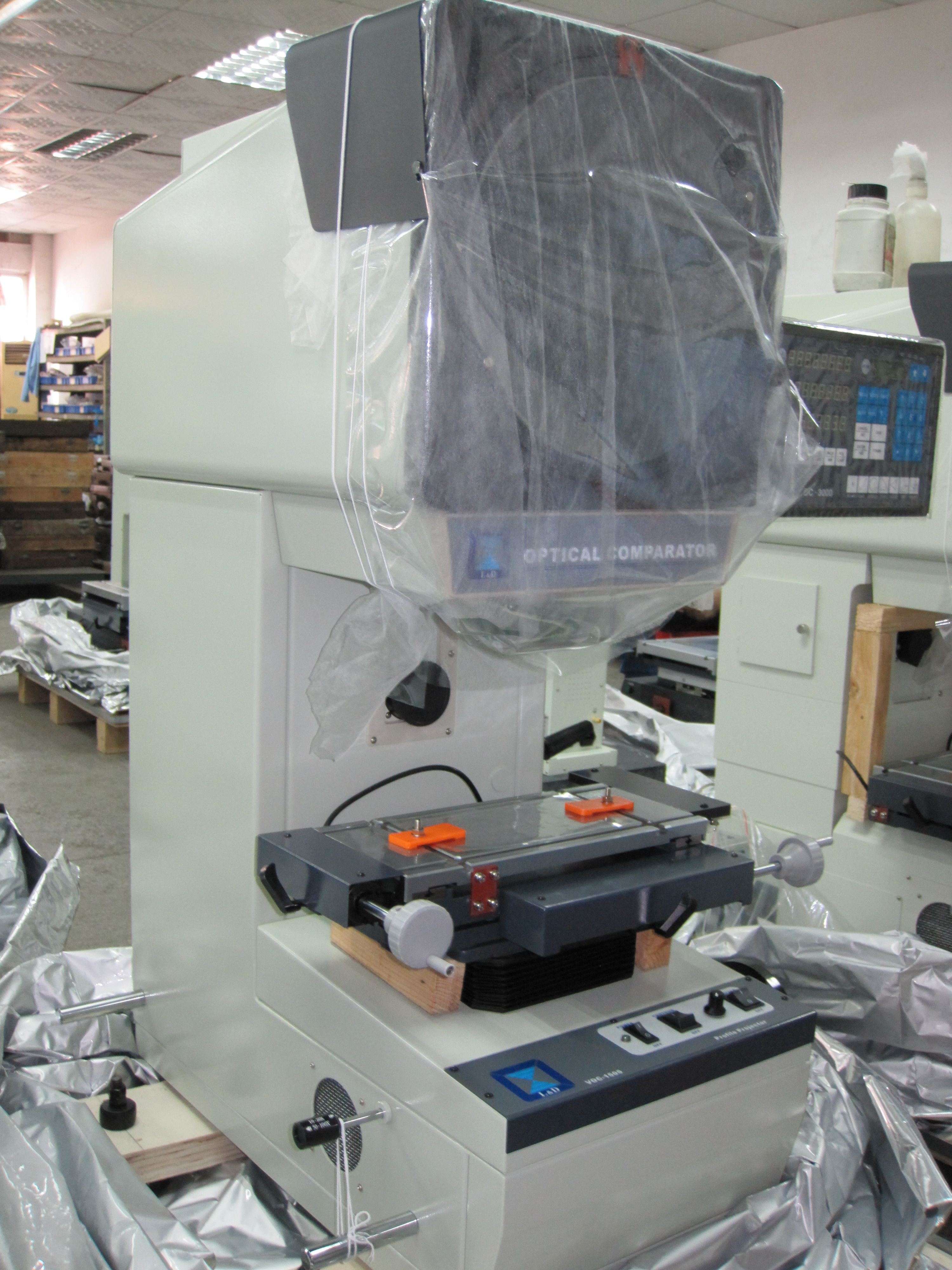

    Quality products Optical Comparator VOC-1505 from Leader Precisionprovide dimensional measurement of O Rings, Silicone, O-rings, seal kits, as well as angle measurement, it is very easy, fast and accurate for process control and improvement.


    With producing an extremely sharp and clear Superb-high resolution image on the projection screen, the optical comparator VOC600 can automatically compare a work piece to its CAD data and get an accurate and repeatable OK/NG result.



    Features & Advantage
    • Excellent optical measuring system
    • Magnification accuracy: 0.08% under contour illumination; 0.12% under surface illumination
    • Equipped with DC-3000 Metrology Counter for Geometry measurement.
    • Supplied with Foot-switch for quick measuring.
    • Erect image measuring for different requirements
    • High Precision measuring table with T-slot, easy to fix the work pieces
    • 0.5 micron High Resolution linear scale
    • Customer can also choose optical Edge Detector system as option for auto measurment.
    • Customer can also choose Metrology software as option, the measurement data can be exported to Ms OFFICE


    Profile Projector Warranty
    We supply 18 months Warranty time instead of 12 months


    Technical Data

    ErectVOC1505
    Metal table's size(mm)340*152
    Glass table's size(mm)196*96
    Stage Travel X-axis150mm
    Stage Travel Y-axis50mm
    Stage Travel Z-axis90mm(for focus)
    Resolution0.5µm
    Measuring unitBuilt-in linear scales
    Accuracy≤(3+L/75)µm
    ScreenScreen Diameter: ¢312mmwith 4 film clips
    Screen material: fine ground glass
    Reference line: Staggered cross and crosshair
    Screen rotary range: 0°~360°
    Rotary angle resolution:1' or 0.01°
    Digital ReadoutDC-3000 Metrology Counter with RS-232C output
    Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting,
    ½ calculation, 0 ° 90 ° 270 ° 360 ° conversion, linear compensation,
    RS-232 data output
    IlluminationContour illumination: 24V/150W halogen bulb
    Reflected illumination: 24V/150W halogen bulb
    Filter (option) for contour illumination
    PowerAC110-120v, 200-240v, single phase 50/60Hz,Total power 400W
    CoolingBuilt-in cooling fans
    G.W/N.W165/110KG

    Technical Data of Objective Lens

    Objective LensMagnification10X20X50X100X
    View field diameter¢30¢15¢6.1¢3
    Working Distance(mm)77.744.338.425.3
    Max. Workpiece height80mm80mm80mm80mm

    Standard Delivery

    Digital Readout DC-3000VOC-10X ObjectiveScreen Clamp
    Foot-SwitchRotary tablePower cable

    Optional Delivery

    2D Measuring SoftwareOptical Edge DetectorOverlay Charts (3 kinds)
    VOC-20X Objective lensVOC-50X Objective lensVOC-100X Objective lens
    Holder with ClampV Block with ClampSwivel Center Support
    Mini-PrinterCalibration ScaleCalibration gauge
