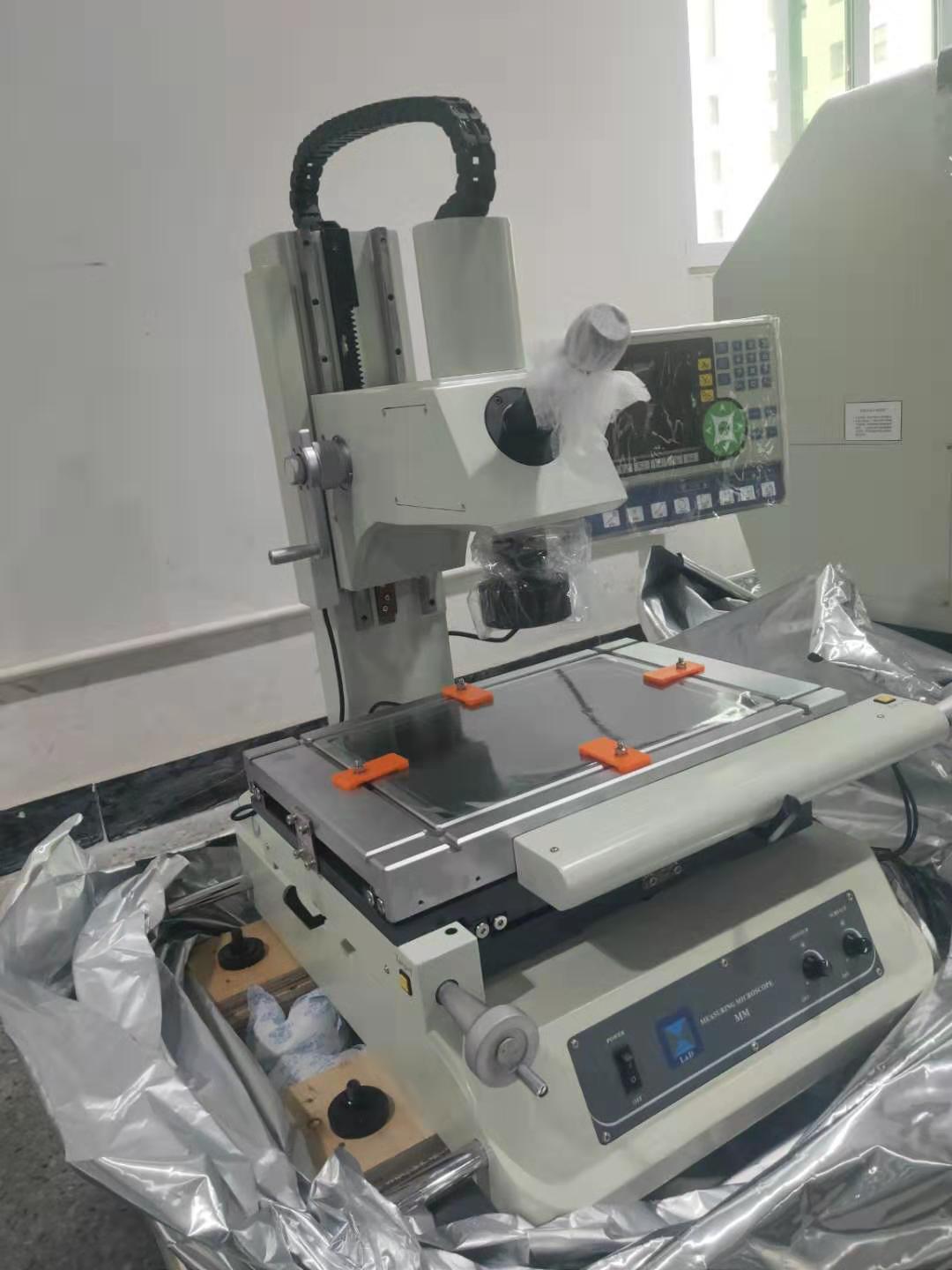

    LCD counter Inspecting 0.5 Micron Tool-Makers Microscope In Metrology

    Usage
    MM series Tool maker microscope is a photoelectric measuring system of high-precision, high-efficiency. It is mainly applied in 2D measurement, sometimes in 3D as well with eyepiece gauge. The measurements of surface roughness, height, depth, steps, etc. are made simply by relative measuring method. MM series Tool maker measuring microscope is highly appreciated by manufacturers for its accurate measurement and inspection of objects, such as PCB, precision parts, ICs, magnetic heads, electronic components, etc. Expect for measuring length, angle, it also can be used as observation microscope.


    Technical data

    ModelMM-3020
    X,Y axis travel(mm)300*200
    Stage glass size(mm)350*250
    Z axis travel(mm)200
    X,Y,Z axis resolution (μm)0.5
    Length unitLinear scale
    Measuring accuracy (μm)2.5+L/200 L=measuring length (mm)
    Operation modemanual
    EyepieceWF10X(monocular or binocular tube)
    Objective lens1X3X(standard)5X10X
    图像检测装置(选配)High resolution CCD camera
    Measuring software2D
    IlluminationtransmittedLED ring light
    contourLED lamp
    Power supplyAC100~240V 50/60Hz
