    LCD HBRV-187.5D Different Types Of Hardness Testing Machine Brinell, Rockwell, Vickers

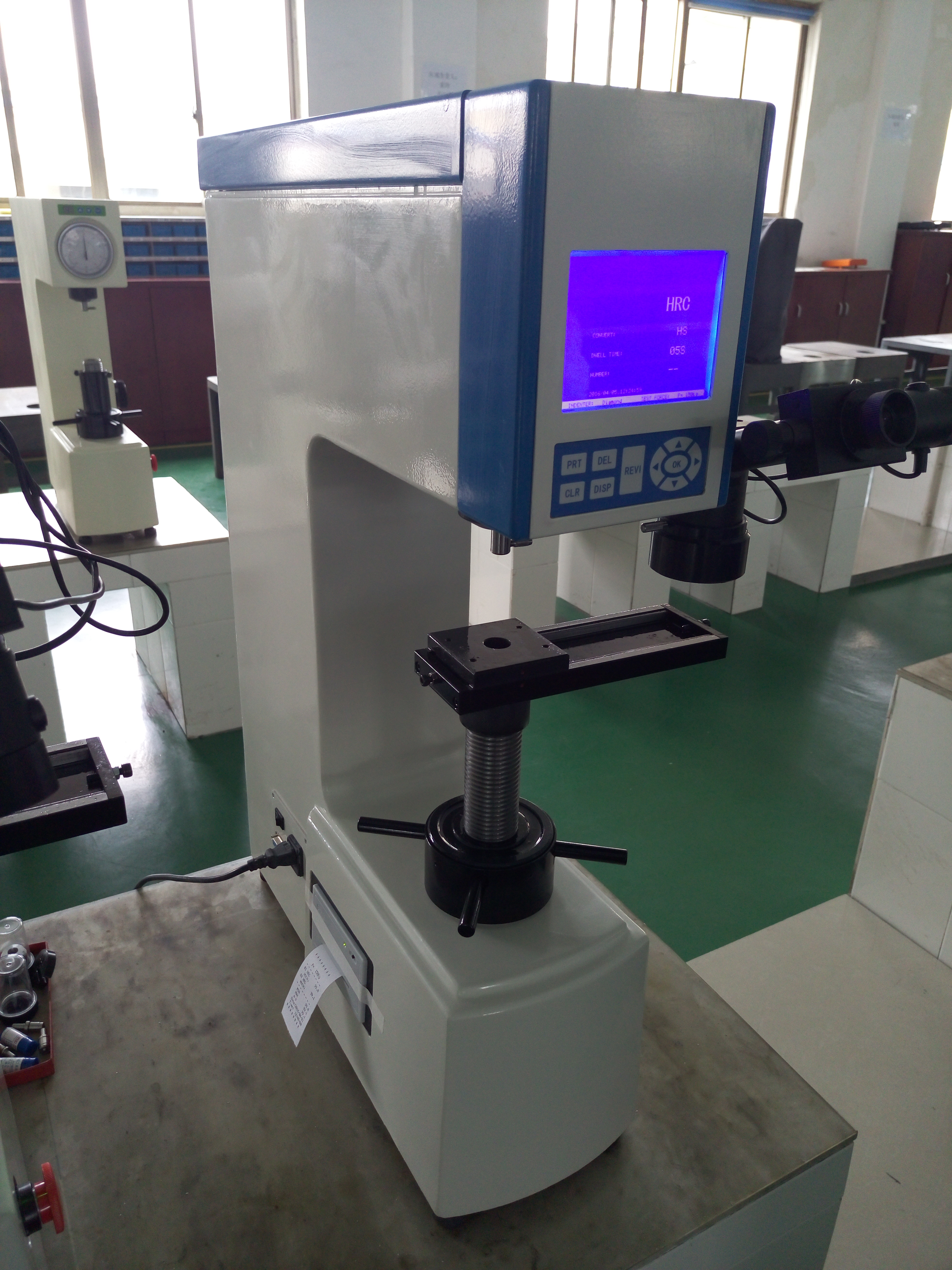

    LCD Display Digital Multi-function Hardness Tester With Brinell, Rockwell and Vickers Scales (HBRV-187.5D)

    Usage
    Universal hardness tester HBRV-187.5D is also known as brinell/rockwell/vicker hardness tester, multi-function hardness tester,universal hardness tester, this durometer can measure different kinds of hardness. Universal hardness tester is the complex of brinell hardness tester,rockwell hardness tester and vickers hardness tester. Compound hardness tester is the high-level hardness tester in the market at present.
    Model HBRV-187.5D Digital Universal Hardness Tester is digital cloth, Luo, Victoria hardness form new, fully functional, easy operation, clear display and intuitive, stable performance, is a light in one of the high-tech mechanical and electrical products, Brinell, Rockwell, Vickers three test methods to test, with a multifunction seven test force hardness tester, hardness testing can meet a variety of needs. Test force loading, dwell, unloading automatic switching, simple and fast to operate.


    Features & Advantage
    1. Digital LCD reading of Brinell, Rockwell and Vickers scales
    2. Moving table between indenter and measuring microscope
    3. Magnification by objective lenses 37.5x and 75x
    4. Integrated printer for test result and statistics
    5. RS-232C interface is available

    Specifications

    Product nameDigital Universal Hardness Tester
    ModelHBRV-187.5D
    Hardness parametersRockwell, Brinell, Vickers
    OpticsEyepiece magnification 15X
    Magnification of microscopeBrinell:37.5x; Vickers:75x
    Rockwell test loads60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N)
    Brinell test loads31.25Kgf(306.5N),62.5Kgf(612.9N),187.5Kgf(1839N)
    Vickers test loads30Kgf(294.2N), 100Kgf(980.7N)
    Dwell time0-60S
    Hardness indicationDigital LCD display
    Resolution0.1HR
    Loading controlAutomatic
    Data outputRS-232C and built-in printer
    Max. height of specimenRockwell:170mm; Brinell, Vickers:140mm
    Instrument throat165mm
    Dimension (L*W*H)520 x240 x700mm
    Packing size630 x440 x960mm
    Gross/Net weight120kg/90kg
    Power supply220V or 110V AC, 50 or 60Hz
    AccuracyConforms to EN-ISO 6506 ,6507,6508, ASTM E18,ASTM E10 and ASTM E92, GB/T230.2, GB/T231.2, GB/T 4340.2

    Standard Delivery
    Main unitThermal printerDiamond Rockwell indenter
    Vickers indenterRockwell ball indenter 1/16"Brinell ball indenter Ø2.5, Ø5mm
    Digital eyepiece 15xBrinell objective 2.5xVickers objective 5x
    Large flat anvil Ø150Small flat anvil Ø60V-anvil Ø40
    Hardness test blocksAdjustable feetAccessories case
    Anti-dust coverInstruments certificateInstallation & user manual
