10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics

    Buy cheap 10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics from wholesalers

    Buy cheap 10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics from wholesalers
    • Buy cheap 10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics from wholesalers

    10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics

    Ask Lasest Price
    Supply Ability : 50, 000PCS/Year
    Payment Terms : L/C, T/T, Western Union
    Price : negotiation
    Brand Name : HARDRULER
    Model Number : HV-10
    Certification : CE
    • Product Details
    • Company Profile

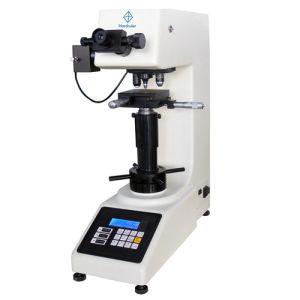

    10kg force Digital Macro-Vickers Hardness Tester For Steel/Glass/Ceramics


    Usage
    Model HV-10 series Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.

    Typical applications
    • Cemented carbide, steels, ceramics, non-ferrous metals
    • Thin plates, metallic foils, plating
    • Material strength, effect of heat treatment, depth of carburized or decarburized layer and flame hardened layer, effect of hardening, hardness resulting from welding or deposition
    • Routine testing of precision components

    Features & Advantage
    1. Closed-loop system with load cell enhances the accuracy
    2. Integrated hardness calculator
    3.2-way switchable optical paths
    4. CCD video measurement system optional


    Specifications

    Product nameVickers Hardness Tester
    ModelHV-10HV-10M
    Vickers scalesHV0.3, HV0.5, HV1, HV2, HV2.5, HV3, HV5, HV10
    Testing loadKgf0.3, 0.5, 1, 2, 2.5, 3, 5, 10
    N2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.03, 98
    Testing RangeHV1~HV2967
    Lens & indenter SwitchManual turretMotorized turret
    Load controlAutomatic (loading/dwell/unloading)
    Dwell timeAdjustable 0~60s
    Hardness indication1HV/LCD display
    IlluminationHalogen lamp light source
    ObjectivesObservation:10x; measurement:20x
    Eyepiece10x
    XY stageSize:100x100mm; travel:25 x25mm; resolution:0.01mm
    Max. height of specimen170mm
    Instrument throat130mm
    Dimension (L*W*H)535×230×580mm
    Packing dimension630*460*710mm
    Gross/Net weight50kg/40kg
    Power supply220V or 110V AC, 50 or 60Hz
    AccuracyConforms to EN-ISO 6507 , ASTM E92, GB/T4340.2

    Standard delivery

    Main unit1pcs
    Diamond Vickers indenter1pcs
    Objective 10x1pcs
    Objective 20x1pcs
    Analogue eyepiece 10x1pcs
    XY-stage with micrometers1pcs
    Adjustable foot4pcs
    Level gauge1pcs
    Hardness test block2pcs
    Accessories case1pcs
    Anti-dust cover1pcs
    Instrument certificate1pcs
    Installation & user manual1pcs
